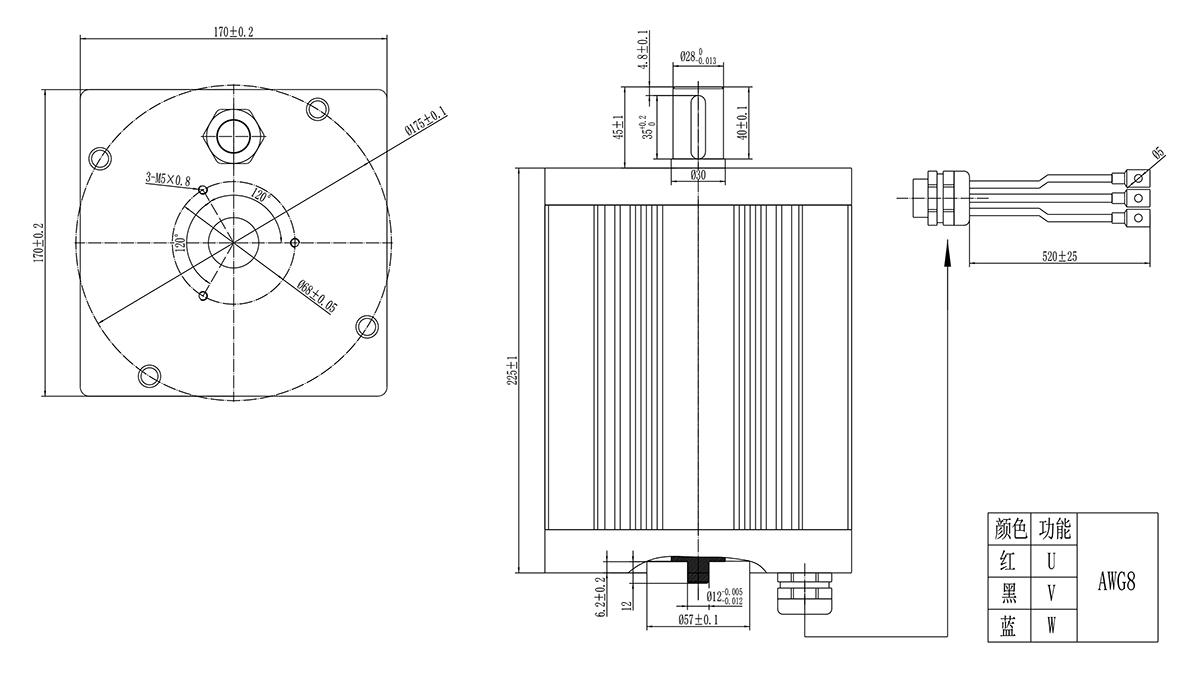

English更多170伺服電機系列產品請致電0519-88385510或郵件info@ht-motor.com
| 型號 | MANUFACTUER MODEL | ES17005G-25D11-XXX |
|---|---|---|
| 絕緣等級 | NSULATION CLASS | F |
| 反饋裝置 | FEEDBACK DEVICE |
|
| 防護等級 | PROTECTION LEVEL | IP55 |
| 型號 | MANUFACTUER MODEL | ES17005G-25D11-XXX |
|---|---|---|
| 極數 | No.OF POLES | 8 |
| 直流電壓 | DC LINK VOLTAGE | 48 VDC |
| 額定功率 | RATED POWER | 2500W |
| 額定扭矩 | RATED TORQUE | 22N.m |
| 額定速度 | RATED SPEED | 1100 RPM |
| 額定電流 | RATED CURRENT | 65 A |
| 最大扭矩 | MAXIMUM TORQUE | 43Nm |
| 阻力線 | RESISTANCE LINE-LINE | 0.032Ω |
| 電感線 | INDUCTANCE LINE-LINE | 0.52mH |
| 電時間常數 | ELECTRICAL TIME CONSTANT | 2ms |
| 機械時間常數 | MECHANICAL TIME CONSTANT | 1.8ms |
| 電壓常數 | VOLTAGE CONSTANT | 24.2 V/KRPM |
| 扭矩常數 | TORQUE CONSTANT | 0.355Nm/A |
| 工作職責 | WORK DUTY | S9 |
| 轉子轉動慣量 | ROTOR MOMENT OF INERTIA | Kg.m² |
| 絕緣等級 | INSULATION CLASS | F |
| 最大徑向力 | MAX..RADIAL FORCE | TBD N |
| 最大軸向力 | MAX..AXIAL FORCE | TBD N |
| 重量 | WEIGHT | 20 KG |
| 反饋裝置 | FEEDBACK DEVICE |
|
| 防護等級 | PROTECTION LEVEL | IP55 |
